Custom Inox Wire Mesh Architectural 1.5mm SS316 Wire Rope Fence

Name: Custom Inox Wire Mesh Architectural 15mm SS316 Wire Rope Fence
Brand: Yuntong
Price: 1 USD

Quality Custom Inox Wire Mesh Architectural 1.5mm SS316 Wire Rope Fence for sale

Brand Name : Yuntong

Model Number : YT-XT21

Certification : CE,SGS

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 2000 square meters per week

Delivery Time : 5-8 work days after confirming the details

Packaging Details : Paper carton inside,wooden case outside

Product name : Inox SS 316 Wire Rope Fence

Sample : Support customization

Mesh Size : As your requirements

Hole shape : Square,Diamond

Material : AISI 304,AISI 316,AISI316l

Wire Diameter : 1.5mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm

Mesh Hole Size : 40mm,50mm,60mm,80mm,customizable

Application : Stair Protection,Balustrade Mesh,Architecture Mesh

Contact Now

Flexible Colored 2.0 mm Thickness Cable Wire Railing Mesh for Balcony and Balustrade Infill Netting

Custom Inox Wire Mesh Architectural 1.5mm SS316 Wire Rope Fence

Specifications of Stainless Steel 304 Wire Rope Mesh:

Rope diameter, Mesh Hole size, and Mesh panel size can all be customized.
Flexible Stainless Steel Wire Rope Mesh material is producing by high quality stainless steel wire cable,;
The standard Stainless Steel Cable Mesh diameter includes 1/8", 3/32", 1/16", and 3/64",the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".

Material	SS304 , SS316
Cable Diameter	1.2mm , 1.5mm , 1.6mm , 2.0mm , 2.5mm ,3.0mm , 4.0 mm
Aperture	30mm, 35mm , 35mm , 38mm , 40mm ,50mm , 60mm , 75mm , 100mm etc
Mesh Type	1. Seamless Ferruled & Clips Ferruled 2. Knotted Type
Orientation	Horizontal & Vertical
Finished	Polish,PVC Coated , Black Oxide

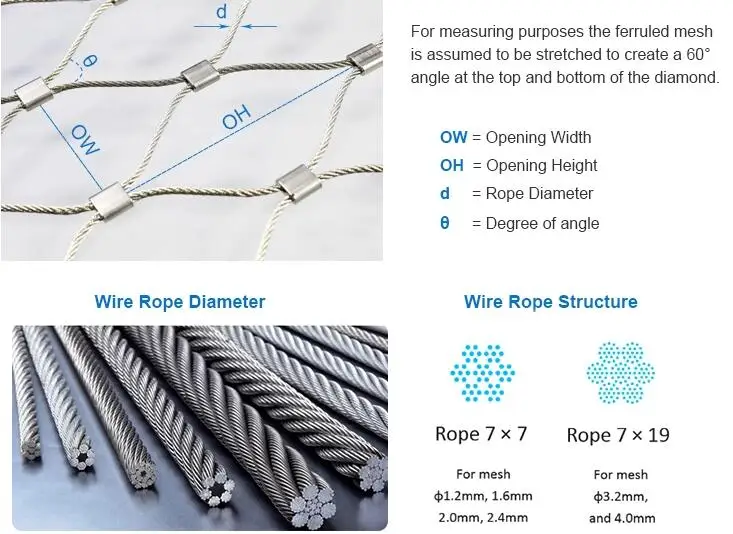

Stainless Steel Wire Rope Mesh Specifications
Mesh Aperture	Wire Diameter
OW X OH	1.0mm	1.5mm	2.0mm	3.0mm	4.0mm
20 x 35	YT1020
25 x 45	YT1025	YT1525
35 x 61	YT1035	YT1535	YT2035
40 x 70	YT1040	YT1540	YT2040	YT3040
50 x 90	YT1050	YT1550	YT2050	YT3050	YT4050
60 x 105	YT1060	YT1560	YT2060	YT3060	YT4060
70 x 120	YT1070	YT1570	YT2070	YT3070	YT4070
80 x 140	YT1080	YT1580	YT2080	YT3080	YT4080
100 x 175	YT10100	YT15100	YT20100	YT30100	YT40100
120 x 210	YT10120	YT15120	YT20120	YT30120	YT40120
160 x 280	YT10160	YT15160	YT20160	YT30160	YT40160
180 x 315	YT10180	YT15180	YT20180	YT30180	YT40180
200 x 350	YT10200	YT15200	YT20200	YT30200	YT40200
250 x 450	YT10250	YT15250	YT20250	YT30250	YT40250
300 x 525	YT10300	YT15300	YT20300	YT30300	YT40300

Mesh type:

Stainless Steel Wire Rope Zoo Enclosure is customized to in width and length to suit your application. Finished diamond mesh style when it is stretched at 60 degree angle ; And there are two kind of mesh types : Ferruled and Knotted ;

Ferruled Type

Knotted Type

Mesh Aperture Orientation

There are two kind of mesh aperture orientation:1. Horizontal
2. Vertical
You can choose anyone to meets your requirements.

Features:

The flexible stainless steel wire rope zoo enclosure has irreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.

Ends Of The Wire Rope Mesh Design:

There are many kinds of different mesh styles,you can choose anyone you need.Please check the following picture,they are the popular styles :

Stainless Steel Wire Rope Mesh Widely Applications:

Stainless steel wire rope mesh has multiple applications including balustrades, safety netting, zoological enclosures, tensile facades and art installations.

Zoo Mesh Fence

Airport Fall Prevention Rope Net

Protection Mesh for balcony

Aviary Mesh

Plant Support Mesh

Children Playground Protection

Kindly Reminder :

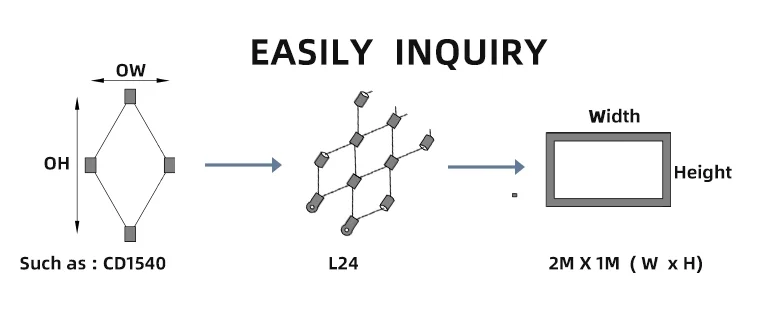

Price for Stainless Steel Wire Rope Mesh: A. Please confirm the wire rope diameter and hole size you want? B. Which Constructions of Rope Mesh do you prefer? Knotted or Ferruled . C. What is the material of the Rope Mesh you want ? SS304,SS316 or SS316L . D. Also please tell us the dimension of the rope mesh you prefer and the quantity . When getting your confirmations, then we will be able to offer our exact price timely.
